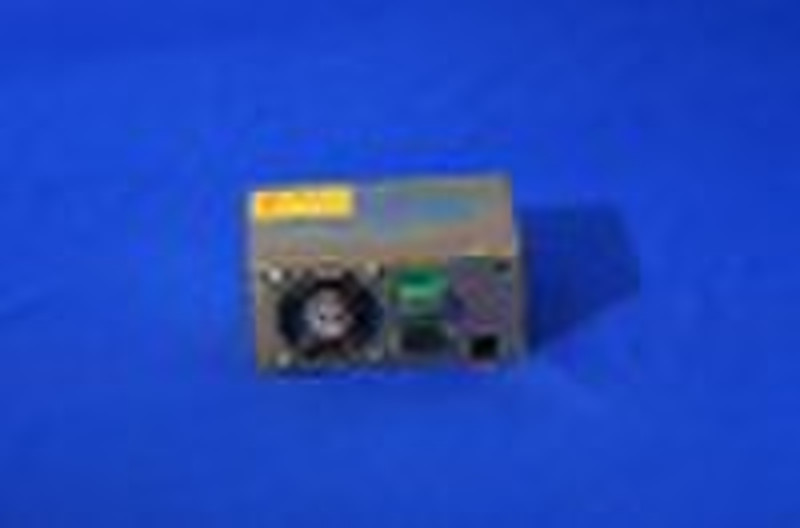

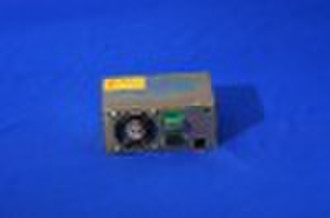

co2 glass laser power supply

Laser Power Supply Model PS-60W Technical ParameterInput VoltageInput VoltageAC220V or AC110VAC Frequency47-440HzCold surge current≤60A(AC220V input)≤60A(AC220V input)Leak current≤0.7mA(AC220V input)≤0.7mA(AC220V input)OutputMax output VoltageDC 35KVMax Output currentDC 23mAEfficiencywhen>92%load downTime no-failure>10000 hoursResponse speed≤1ms(the time from output of switch signal to 90%of initial setting current)Control portTTL electricity level switch control, valid electricity has high/low level choicesVoltage-resistingInput-Output ,input-machine hull: 1500V 10mA 60s AC output cathode and machine hull connectionProtectionCan be used an opening way in a short timerequest the outer shell be good to connect the ground avoid arcing between anode and machine hull connection in the machineVsage environmentWork temperature(-10-- 40).Relative humidity≤90%Cooling TypeThe compulsive air coolingsizeL×W×H=210×160×95mm
