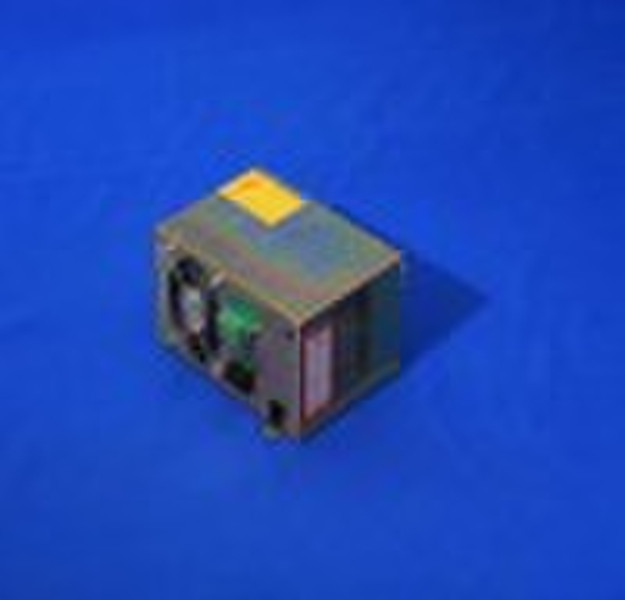

60W CO2 Laser Power Supply

CO2 Laser Power Supply Model PS-60 Technical ParametersInput VoltageInput VoltageAC 220V or AC110V AC Frequency47- 440Hz Cold Surge Current≤60A(AC220V input) ≤30A(AC110V input) Leak Current≤0.7mA(AC220V input) 0.4mA(AC110V input) OutputMax Output Voltage DC 35KV Max Output Current DC 23mA EfficiencyWhen> 90% load downTime no-failure>10000 hoursResponse Speed≤1ms (the time from output of switch signal to 90%of initial setting current)Control portTTL electricity level switch control, valid electricity has high/low level choicesVoltage-resistingInput-Output, input-machine hull: 1500V 10mA 60s AC output cathode and machine hull connectionProtectionCan be used an opening way in a short timerequest the outer shell be good to connect the ground avoid arcing between anode and machine hull connection in the machineUsage EnvironmentWork temperature(-10 degrees centigrade to 40 degrees centigrade).Relative humidity≤90%Cooling TypeThe compulsive air coolingSizeL×W×H= 210×160×95mm
